Part
Vds Min (V)
ID@TC=25℃
RDS(on) Max 10V(mΩ)
RDS(on) Max 4.5V(mΩ)
PD@TC=25℃ (W)
Vgs(±V)
Vth (V)
Ciss Typ(pF)
Qg Typ(nC)
Configuration
Package
Application
同類型號
Status
HYG055N08NS1C2
80
85
6
N/A
83.3
20
2~4
3660
60
Single - N
PDFN8L(5x6)
BMS / Motor drive
MP
產品特性：
This is a 80V,4.8mΩ,PDFN8L(5x6) package product，using SGT structure technology, It is su...

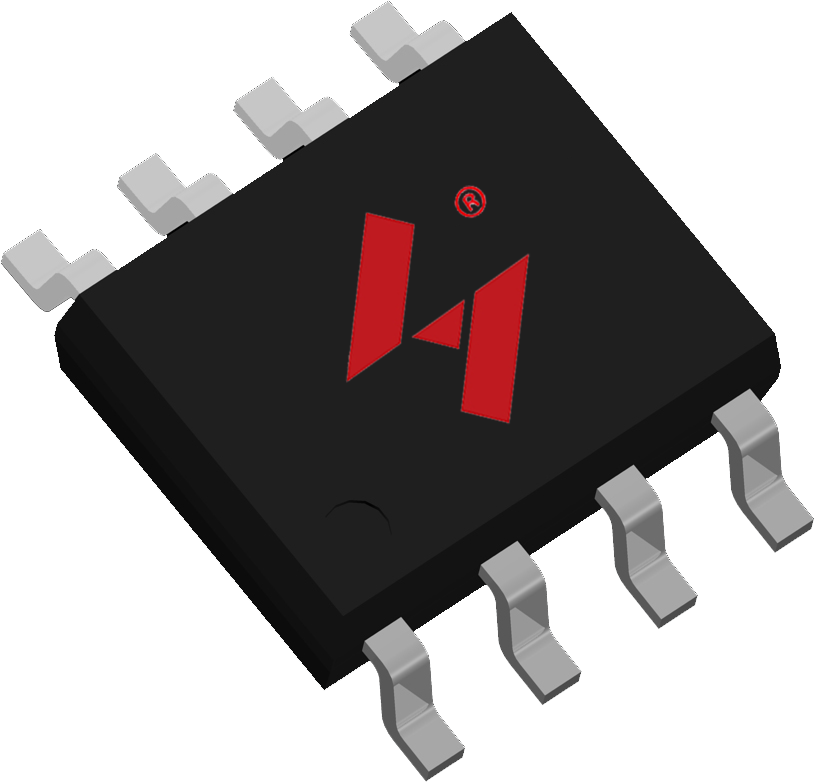

HYG130N10LS1S
100
11.5
13.4
16
3
20
1~3
14
0.3
Single - N
SOP8L
BMS / AC-DC synchronous?rectification / Power Supply
MP
產品特性：
This is a 100V,11.2mΩ,SOP8L package product，using SGT structure technology, It is suitabl...
HYG400N15NS1P
150
40
41
N/A
115
20
2~4
2140
30
Single - N
TO-220FB-3L
/ AC-DC synchronous?rectification
MP
產品特性：
The N-channel MOSFET in TO-220FB-3L package features VDS?150 V and RDS(on)?32 Ohm, using t...
Part
Vds Min (V)
ID@TC=25℃
RDS(on) Max 10V(mΩ)
RDS(on) Max 4.5V(mΩ)
PD@TC=25℃ (W)
Vgs(±V)
Vth (V)
Ciss Typ(pF)
Qg Typ(nC)
Configuration
Package
Application
同類型號
Status
HYG013N03LS1C2
30
150
1.6
2.8
65
20
1~3
3011
44.7
Single - N
PDFN8L(5x6)
BMS / / synchronous rectification
MP
產品特性：
This is a 30V，1.3mΩ, PDFN8L(5x6) package product， using SGT structure technology, It is su...
HYG014N03LS1C2
30
200
1.5
2.7
113
20/-12
1~3
5661
69.9
Single - N
PDFN8L(5x6)
BMS /
AON6522
MP
產品特性：
This is a 30V，1.2mΩ, PDFN5*6 package product， using SGT structure technology, It is suitab...
HYG035N04LR1C2
40
-100
2.9
3.9
57
20
1~3
5905
107.1
Single - N
PDFN8L(5x6)
BMS / Motor drive
MP
產品特性：
This product has been discontinued，Please choose HYG037N04LR1C2
HYG017N04LS1C2
40
135
2.1
2.8
75
20
1~3
4332
66.1
Single - N
PDFN8L(5x6)
Motor drive / AC-DC synchronous?rectification / Electronic Speed Controller
AON66402
MP
產品特性：
This is a 40V，1.7mΩ, PDFN8L(5x6) package product， using SGT structure technology, It is s...
HYG025N04NA1C2
40
190
1.8
N/A
130
20
2~4
5744
122.2
Single - N
PDFN8L(5x6)
BMS
MP
產品特性：
This is a 40V，1.4mΩ, PDFN5*6 package product， using trench structure technology, It is sui...
Part
Vds Min (V)
ID@TC=25℃
RDS(on) Max 10V(mΩ)
RDS(on) Max 4.5V(mΩ)
PD@TC=25℃ (W)
Vgs(±V)
Vth (V)
Ciss Typ(pF)
Qg Typ(nC)
Configuration
Package
Application
同類型號
Status
HYG200P10LR1P
-100
-80
28
32
214
20
-1~-3
11520
181
Single - P
TO-220FB-3L
Load Switch
MP
產品特性：
The P-channel MOSFET in TO-220FB-3L package features VDS -100 V and RDS(on)?20 Ohm, using ...
HYG400P10LR1P
-100
-40
58
65
100
20
-1~-3
5402
79
Single - P
TO-220FB-3L
Load Switch
MP
產品特性：
The P-channel MOSFET in TO-220FB-3L package features VDS?-100 V and RDS(on)?42 Ohm, using ...
HYG086P06LA1B
-60
-85
9
11
208
20
-1~-3
9202
169
Single - P
TO-263-2L
BMS
VSM007P06MS、SUM110P06-07L、IPB110P06L
MP
產品特性：
The P-channel MOSFET in TO-263-2L package features VDS?-60 V and RDS(on)?7.4 Ohm, using th...
HYG060P04LQ1D
-40
-70
7.5
10.5
65
20
-1~-3
6774
128
Single - P
TO-252-2L
/ Load Switch
MP
產品特性：
The P-channel MOSFET in TO-252-2L package features VDS?-40 V and RDS(on)?5.8 Ohm, using th...
HYG045P03LQ1D
-30
-90
5.5
9.5
60
20
-1~-3
6750
135.5
Single - P
TO-252-2L
BMS / BMS
MP
產品特性：
The P-channel MOSFET in TO-252-2L package features VDS?-30 V and RDS(on)?4.4 Ohm, using th...
Part
Vds Min (V)
ID@TC=25℃
RDS(on) Max 10V(mΩ)
RDS(on) Max 4.5V(mΩ)
PD@TC=25℃ (W)
Vgs(±V)
Vth (V)
Ciss Typ(pF)
Qg Typ(nC)
Configuration
Package
Application
同類型號
Status
HYG013N03LS1C2
30
150
1.6
2.8
65
20
1~3
3011
44.7
Single - N
PDFN8L(5x6)
BMS / / synchronous rectification
MP
產品特性：
This is a 30V，1.3mΩ, PDFN8L(5x6) package product， using SGT structure technology, It is su...
HYG025N04NA1C2
40
190
1.8
N/A
130
20
2~4
5744
122.2
Single - N
PDFN8L(5x6)
BMS
MP
產品特性：
This is a 40V，1.4mΩ, PDFN5*6 package product， using trench structure technology, It is sui...
HY030N06C2
65
100
2.8
4.5
48
20/-12
1~3
5270
96
Single - N
PDFN8L(5x6)
BMS / BMS
MP
產品特性：
This product has been discontinued，Please choose HYG036N06LS1C2/HYG030N06LS1C2
HY4008P
80
200
3.5
N/A
345
25
2~4
8157
197
Single - N
TO-220FB-3L
Battery management system / / Inverter
MP
產品特性：
This is a 80V，2.9mΩ, TO-220FB-3L package product，using trench structure technology, It is ...
HY4008B
80
200
3.5
N/A
345
25
2~4
8157
197
Single - N
TO-263-2L
Battery management system /
MP
產品特性：
This is a 80V，2.9mΩ, TO-263-2L package product，using trench structure technology, It is s...
